Prometheus Installation Guide

For server administrators opting for standalone binary instances instead of automated setups, execute the following steps to deploy Prometheus version 3.11.3.

1. Create System User & Group​

Isolate the Prometheus runtime by provisioning a dedicated system user without login capabilities:

create user:

sudo useradd --no-create-home --shell /bin/false prometheus

2. Directory Scaffolding​

Create the required directories for configuration and data storage:

create configuration directory:

sudo mkdir /etc/prometheus

create data directory:

sudo mkdir /var/lib/prometheus

set permissions:

sudo chown prometheus:prometheus /etc/prometheus
sudo chown prometheus:prometheus /var/lib/prometheus

3. Download & Extract Binary​

Acquire the official Linux 64-bit package and expand it:

download prometheus:

wget https://github.com/prometheus/prometheus/releases/download/v3.11.3/prometheus-3.11.3.linux-amd64.tar.gz

extract package:

tar -zxvf prometheus-3.11.3.linux-amd64.tar.gz

output:

prometheus-3.11.3.linux-amd64/
prometheus-3.11.3.linux-amd64/LICENSE
...

4. Install Binary & Supporting Files​

Migrate the binaries to their designated locations:

change directory:

cd prometheus-3.11.3.linux-amd64

copy binaries:

sudo cp prometheus /usr/local/bin/
sudo cp promtool /usr/local/bin/

set binary permissions:

sudo chown prometheus:prometheus /usr/local/bin/prometheus
sudo chown prometheus:prometheus /usr/local/bin/promtool

5. Create Configuration File​

Create the primary configuration file at /etc/prometheus/prometheus.yml:

create config:

sudo tee /etc/prometheus/prometheus.yml <<EOF
global:
  scrape_interval: 15s

scrape_configs:
  - job_name: 'prometheus'
    scrape_interval: 5s
    static_configs:
      - targets: ['localhost:9090']

  - job_name: 'node_exporter'
    static_configs:
      - targets: ['10.12.12.22:9100']
        labels:
          name: 'pra-onboard-client-mon-1'
      - targets: ['10.12.12.23:9100']
        labels:
          name: 'pra-onboard-client-mon-2'
EOF

set config permissions:

sudo chown prometheus:prometheus /etc/prometheus/prometheus.yml

6. Systemd Service Unit Definition​

Register the service with systemd:

create service file:

sudo tee /etc/systemd/system/prometheus.service <<EOF
[Unit]
Description=Prometheus Monitoring System
Wants=network-online.target
After=network-online.target

[Service]
User=prometheus
Group=prometheus
Type=simple
ExecStart=/usr/local/bin/prometheus \\
    --config.file /etc/prometheus/prometheus.yml \\
    --storage.tsdb.path /var/lib/prometheus/ \\
    --web.listen-address=0.0.0.0:9090

[Install]
WantedBy=multi-user.target
EOF

7. Start & Enable Service​

Activate the service via systemd:

reload systemd:

sudo systemctl daemon-reload

start service:

sudo systemctl start prometheus

enable service:

sudo systemctl enable prometheus

Verification​

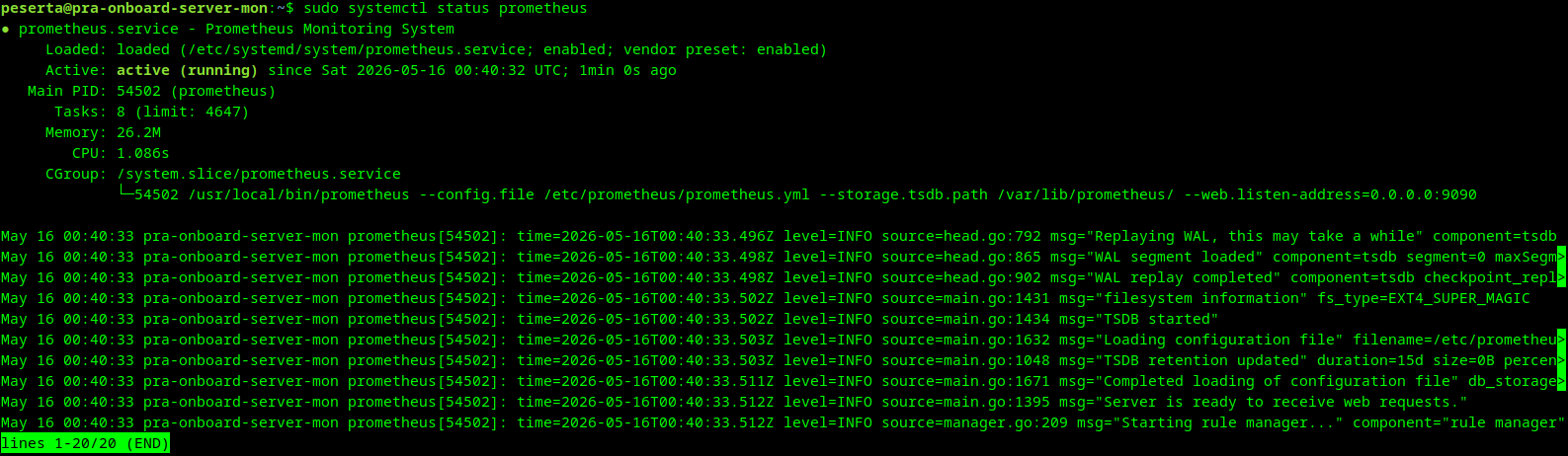

Verify that Prometheus is active and serving metrics:

check service status:

sudo systemctl status prometheus

output:

Prometheus
